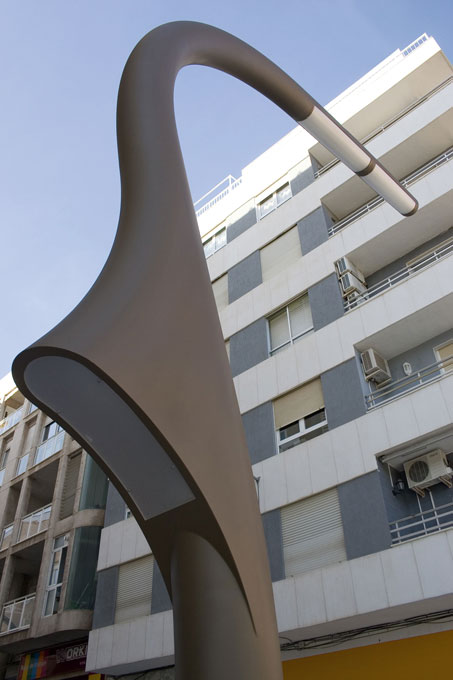

COLUMN
SHAFT: Cylindrical.
SECTION: Circular.
MATERIAL: Carbon steel S 275 JR in compliance with UNE EN 10025.
Produced according to regulation UNE EN 40-5.
GALVANIZED: Hot-dip galvanized according to UNE EN ISO 1461 standard.
FINISH:Option of painting with a colour chosen from the RAL chart.
BASE: Flat plate and reinforced brackets
HEIGHT: Up to 12 m.
COLUMN DIMENSIONS – MODEL SALADO
Note: Dimensions to verify before manufacturing.
| MODEL | H (m) | D (mm) | E (mm) | e (mm) | Bolts Ø y L |
|---|---|---|---|---|---|
| SALADO | 8 | Consultar | 6 | 20 | M-24×1000 |
| SALADO | 9 | Consultar | 6 | 20 | M-24×1000 |
| SALADO | 10 | Consultar | 6 | 20 | M-24×1000 |
| SALADO | 12 | Consultar | 6 | 20 | M-24×1000 |
