Horizontal Cross-bar C-C1 / C-C2

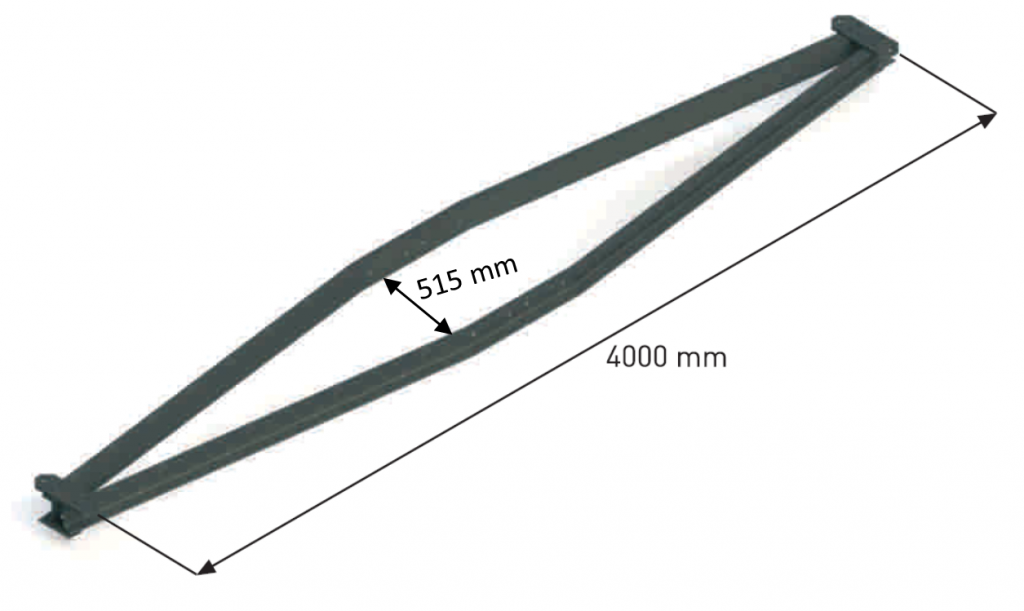

Horizontal Cross-bar C-40R

Horizontal Cross-bar C-35R

Horizontal semi cross-bar SC-1750

Horizontal semi cross-bar SC-1500

Horizontal semi cross-bar SC-750

MECHANICAL CHARACTERISTICS CROSS-BAR C-C1 y C-C2

Cross-barLoad casesWorkloads + overload daN
V
Workloads + overload daN
L
Workloads + overload daN
F
Security
coefficient
Limit specified
load
Faces test daN
V
Limit specified
load
Faces test daN
L
Limit specified
load
Faces test daN
F
a (mm)
Horizontal Cross-bar C-C1 30/5A65020001.597530001500
Horizontal Cross-bar C-C1 30/5B65020001.597530001500
Horizontal Cross-bar C-C1 35/5A52020001.578030001750
Horizontal Cross-bar C-C1 35/5B52020001.578030001750
Horizontal Cross-bar C-C2 40/5 A65030001.597545002000
Horizontal Cross-bar C-C2 40/5 B65030001.597545002000
Horizontal Cross-bar C-C2 35/8A100024001.5150036001750
Horizontal Cross-bar C-C2 35/8B100024001.5150036001750
Horizontal Cross-bar C-C2 40/8A80024001.5120036002000
Horizontal Cross-bar C-C2 40/8B80024001.5120036002000

MECHANICAL CHARACTERISTICS

Cross-barLoad casesWorkloads + overload daN
V
Workloads + overload daN
L
Workloads + overload daN
F
S.C
Horizontal Cross-bar C-40R
A70030001.5
Horizontal Cross-bar C-40RB40022001.5
Horizontal Cross-bar C-35RA70024001.5
Horizontal Cross-bar C-35RB40022001.5
Horizontal semi cross-bar SC-1750A43021001.5
Horizontal semi cross-bar SC-1750B22015001.5
Horizontal semi cross-bar SC-1500A43021001.5
Horizontal semi cross-bar SC-1500B22015001.5
Horizontal semi cross-bar SC-750
A170027001.5
Horizontal semi cross-bar SC-750
B170027001.5

The case of load A represents the wind hypothesis (C.S.=1.5), application of a transversal load, F, combined with the vertical load, V.
The case of load B, depending on the use of the cross-bar, may represent the “traction imbalance” hypothesis (C.S.=1.2) or that of end of line (C.S.=1.5), depending on the case, the following loads will apply: longitudinal, L, transversal F and vertical, V.
